1.1. 0445120056 Injection Basic Information

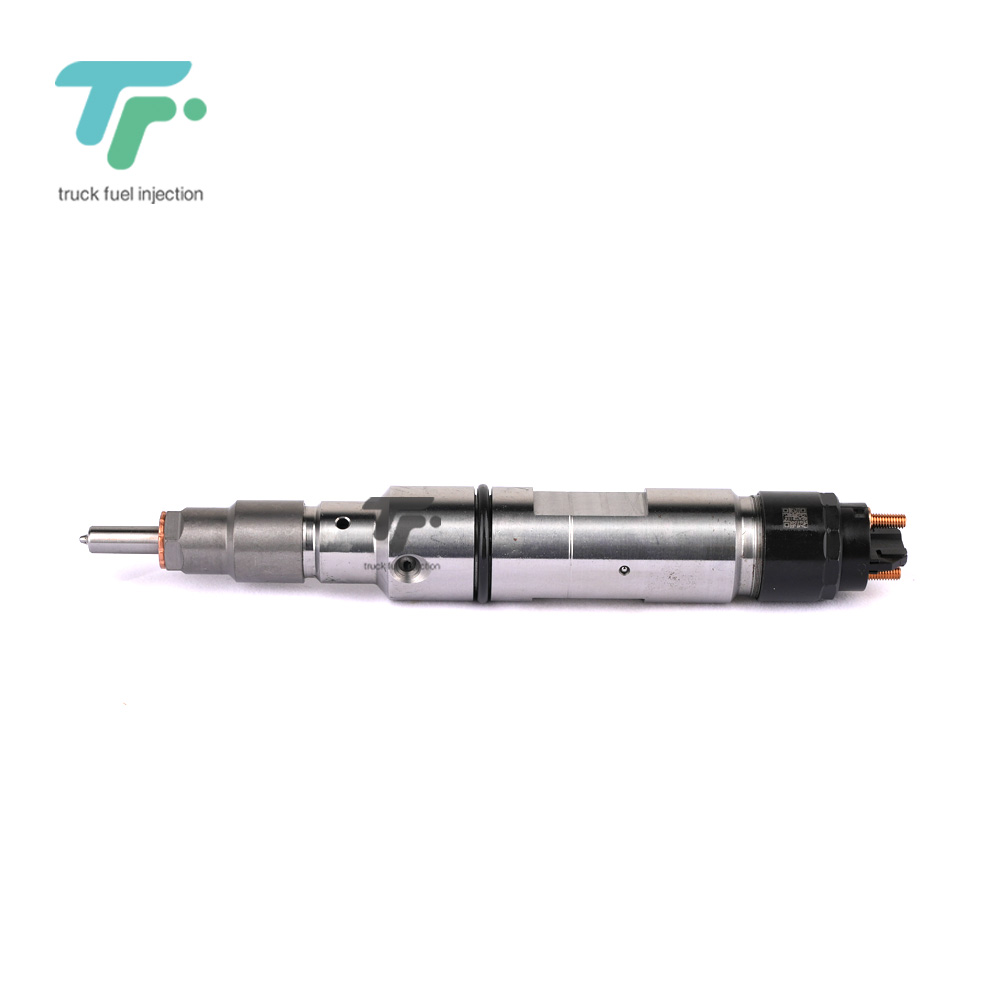

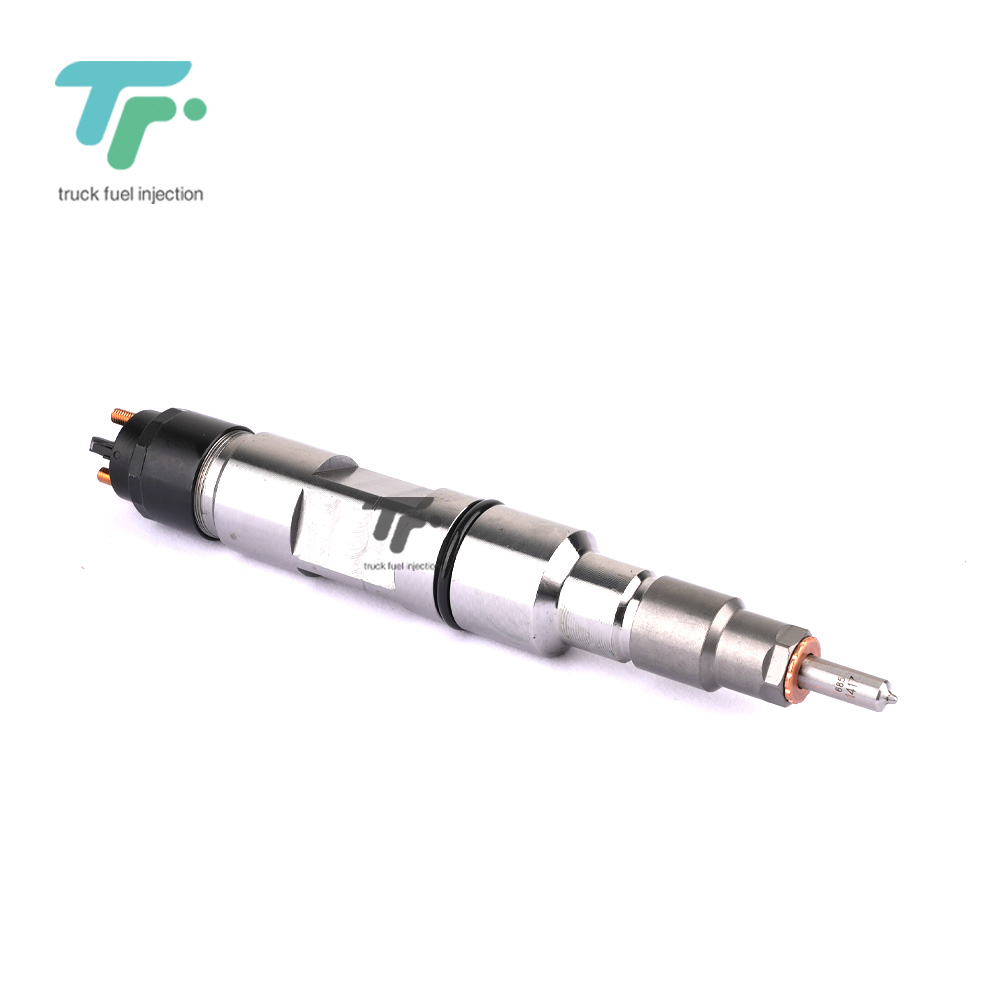

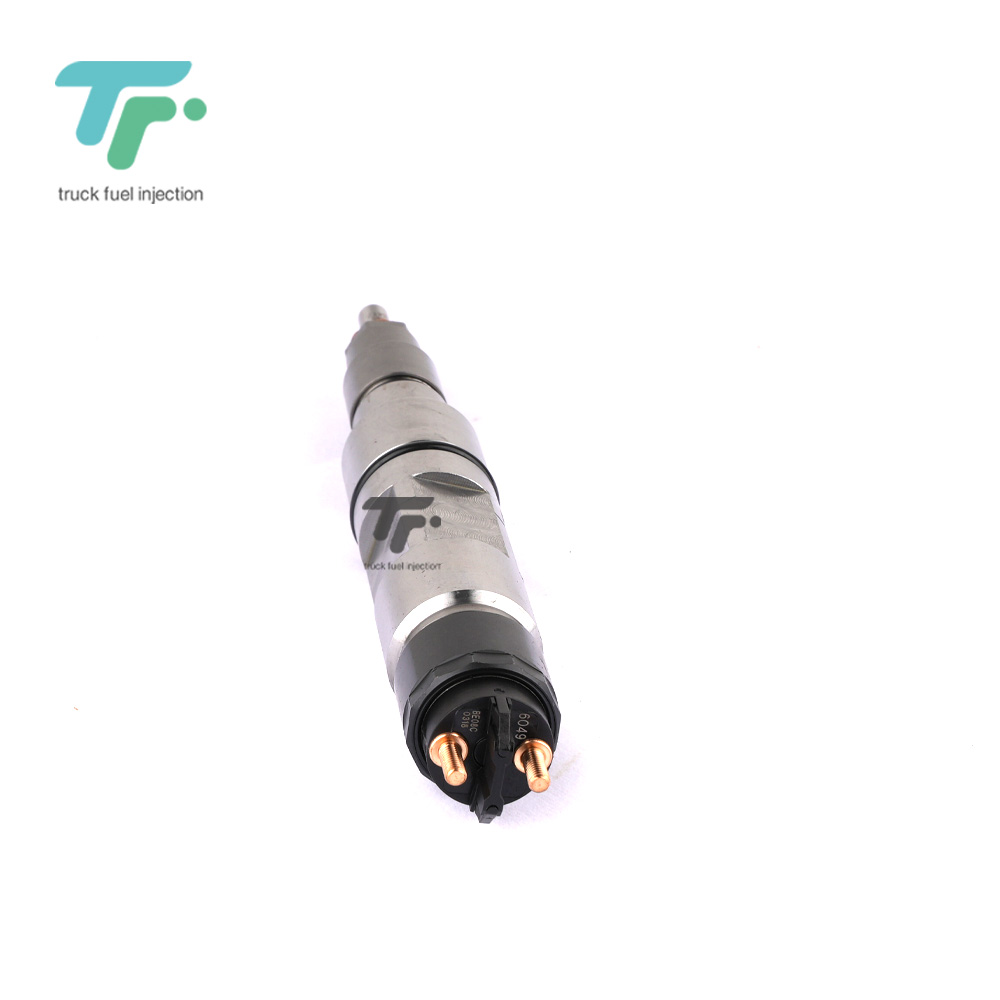

Title	Common Rail CRIN2-16 Series 0445120056 Fuel Injection OE 5264272 2P0 130 201 A	Quality
SKU	G1W20445120056	China Made New

1.2. 0445120056 Injection Common Part Number

  (1)  Injection Exchange Information

Injection Part Number	Universal Part Number	Re-manufactured Part Number
0445120056	0445120341	0 986 435 672
	/



(2)  Injection Application Information

Injection Part Number	MAN Car Model
0445120056	51 10100 6056
0 986 435 672	51 10100 6056

1.3. 0445120056 Injection Matching Information

Vehicle brand	Series	Car Model	Engine Model	Production date	Power (KW)	Horse power	Emission Standards	Manufacturer	Emissions (L)	Cylinder	Power Source(V)
/	/	/	/	/	/	/	/	/	/	/	/



1.4. 0445120056 Injection Parameter

Adaptation System：Common Rail System

Injection Series：120 Series

Parameter Performance：CRIN1-14/16

Matching Accessories：Gasket F 00R J02 175（7.73*14.36*1.49）

Injection Type：Electromagnetic Injection

Support System Maximum Pressure：1,400

Vehicle Configuration Information: CITROEN/FIAT/IVECO/PEUGEOT/RENAULT



1.5. 0445120056 Injection Specifications and Dimensions

Injection Size： 21.5cm*4 cm *4 cm = 344cm³ (L*W*H=V)

Injection Net Weight：0.55kg

Gross Weight：0.6kg

Injection Quality：China-Made New High Quality

Package Size： 28cm*7 cm *7 cm = 1372 cm³

Injection Type：Diesel Common Rail Injection

MOQ：4 Pieces



1.6. 0445120056 Injection Customized Service

Injection Customized Service: Shumatt support shell lettering, logo engraving, injection internal packaging, injection external packaging and labels, etc. Customized service, but the quantity of customized items must meet the demand of OEM manufacturers. The customized items’ quantity requirement is as below.

Injection Customized Service Requirements：

The purchased of customized injection are not less than 10 pieces.

Customized injection packages no less than 1000 pieces.

Customized products involve the need of specify logo, the OEM manufacturer needs to provide trademark authorization and the sample of logo image file.

Once the customized fuel injection is sold, it cannot be returned or exchanged if there is no quality problems.



1.7. 0445120056 Injection Warranty Instructions

(1) Product Warranty Conditions and Instructions

1)  It is necessary to provide pictures, videos, or test reports detected by the injection inspection equipment when the injection is abnormal during use as evidence to feed back to the salesman.

Abnormal conditions are properly explained such as：1.Smoke, 2. Engine shake, 3. Difficulty starting the engine, 4. Engine noise, 5. oil leakage etc.



(2) Injection Warranty Coverage

1) Within 15 days after customer receives the 0445120056injection, if there is a performance failure and the product has no appearance damage, customer can choose to replace it or repair it;

2) If the 0445120056 injection has performance problems during the warranty period (3 months), and it is confirmed that it is product’s problems after testing, you can contact our salesmen to replace the same model or a reworked product with the same performance for free;

3) If the injection house has obvious scratches, it can only be repaired and it will be returned as it is if the product is confirmed to be fault-free.

Tips：For products not covered by warranty, our company can provide paid maintenance services. For products after paid repaired, the same performance problem will have a free warranty period within 3 months from the date of repair



(3) Injection Out of Warranty Coverage

1) The warranty period has expired.

2) Injection failure caused by high temperature, high pressure, humidity, rain and snow, saline-alkali land, earthquake, and used in abnormal environment.

3) Customer disassembles or repairs the injection personally resulting in damage to the injection.

4) Injection damage caused by man-made reasons (throwing, strong magnetic field magnetization, set fire).

5) Injection failure or injection damage caused by non-injection design, technology, manufacturing, quality and other issues.

6) Injection failure due to system pressure exceeding system approved pressure.

7) Injection failure caused by system voltage exceeding approved voltage.

8) Injection failure caused by impurities (water, lead, aluminum powder, iron powder, sulfide) in the system fuel exceeding the standard requirements.

9) Injection failure caused by not installing according to the tightening torque specified in the vehicle engine maintenance manual (the tightening torque is too large or too small).

10) Injection failure caused by not following the installation angle specified in the vehicle engine maintenance manual.

11) Injection failure caused by not following the cleaning requirements specified in the vehicle engine maintenance manual.

12) Injection failure caused by failure to replace consumable parts as specified in the vehicle engine maintenance manual.

13) Injection failure caused by not complying with the intake system fit clearance and exhaust system fit clearance requirements specified in the vehicle engine maintenance manual.

14) Failure to replace the consumable parts and the fitting clearance of the oil inlet system pipeline and the fuel injection connection in accordance with the fuel intake system specified in the vehicle engine maintenance manual.



1.8. 0445120056 Injection Installation Precautions

1) The replacement of the fuel injection must strictly follow the electrical system, the approved pressure of the low-pressure fuel intake system, the approved pressure of the high-pressure fuel circuit system, and fuel system replacement consumables requirements (including the low-pressure fuel circuit system filter and the high-pressure fuel circuit) specified in the vehicle engine maintenance manual.

2) Replacement of wearing parts of the fuel system, cleaning requirements for the connection between the fuel system and the injection, the fitting clearance of the fuel injection connection, the installation angle and tightening torque of the injection, the fitting clearance of the intake system, and the fitting clearance of the exhaust system to ensure the service life of the engine and the normal operation of the injection.

3) When installing the fuel injection on the engine, it is necessary to clean the engine block, cylinder head and other parts connected to the fuel injection, and ensure that there is no dust, carbon deposits, water, rust spots, etc.

4) Before installing, check whether the fuel injection nozzle gasket has been replaced and installed on the fuel injection.

5) When installing the fuel injection, apply lubricant between the fuel injection, fuel nozzle sealing gasket and O-ring.

6) Without replacing new gasket can lead to: deformation of the tight cap of nozzle, deformation of nozzle, deformation of nozzle orifice, oil leakage and air leakage, which will cause serious damage to the fuel injection and nozzle to break and cause damage to the engine.

7) When installing the injection on the engine, please carefully check the components related to the installation of the injection, such as the injection pressure plate, screw, injection rod and other accessories are not deformed, and install it in strict accordance with the operation steps of the engine maintenance manual.

It is forbidden to operate the bare injection for a long time in an environment with serious dust pollution and corrosion to iron products.

It is forbidden to operate the bare injection for a long time in a strong magnetic field environment.



1.9. 0445120056 Injection Purchase Payment Term

Payment Terms: T/T, PayPal, Alipay, WeChat

Please contact our salesmen for specific payment information.



1.10. 0445120056 Injection Shipping Ways

Destination in China areas: SF Express, Debon Express, the corresponding logistics company can be provided according to customer requirements in special cases.

Destinations out of China’s areas： DHL, UPS, FedEx, TNT air, ocean or other shipping methods required by customers.



1.11. 0445120056 Injection Lead time

Lead time：Send out within 3 – 7 working days after receiving payment (Except for special products and special cases).



1.12. 0445120056 Injection Packing

Domestic express packaging: Usually wrapped in waterproof scotch tape	International express packaging: Wrapped with waterproof yellow tape After wrapping the black protective film	Pallet Shipping: Use fumigation free and recycling trays that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties for the outside

①The packing tray is made of plastic and can be recycled.

②Transparent tape, yellow tape, black wrapping protective film, white wrapping protective film are non-degradable materials, please dispose of them properly.

③Minors are prohibited from using transparent tape, yellow tape, black wrapping protective film, and white wrapping protective film to avoid personal injury.
